Tổng quan về sản phẩm

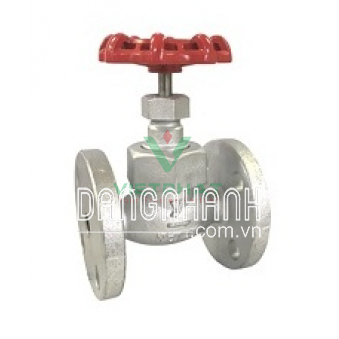

Giới thiệu Van cầu gang Bích GLV-20F:
Thông số kỹ thuật của Van cầu gang Bích GLV-20F:
Feature
Globe Valve
Specifications
Application
Steam, Air, Cold and hot water, Oil, Other non-dangerous fluids
Max.pressure
1.4MPa (GLV-10) ※1, 2.8MPa (GLV-20F) ※1
Max.temperature
300 degrees ※1
Connection
JIS 10KFF (GLV-10F), JIS 20KRF (GLV-20F)
※1
The relation between using pressure and using temperature is according to JIS B2051 Pressure-temperature rating.
Material
Valve Body/Bonnet
Ductile cast iron
Valve seat/Valve stem
Stainless steel
