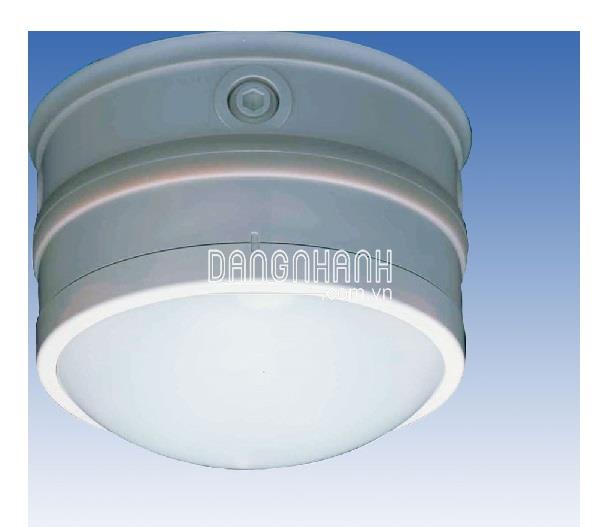

Passive Infrared Sensor TAKEX PA-8410E
- Protection Area Especially Designed To Protect From High Mounting Positions
+ With the unique high-density protection field created by the 4 mirrors equipped inside the unit, it can be used with confidence to protect places with ceilings between 4 and 8 meters high.
- Suitable For Indoor And Outdoor Use
+ With a rain-proof casing, these units are suitable for both internal and external applications.
- Strong housing cases
+ The casings of these units are made from AES resin which improves the unit's resistance to impact.
+ Ideal for use in locations such as sports halls where unit may be subjected to impact.
- External applications
+ The units are constructed with weather-resistant seals to prevent water from entering.
(For exposed wiring, use water-proof grommet or conduit.)
Functions
- L/C (LED control) function
+ The unit is equipped with L/C function by which the LED function can be remotely activated/de-activated.
+ L/C function enables simple walk test functionality after unit is installed.
- A/C (Area control) function
+ The unit is equipped with A/C function by which area coverage can be remotely disabled/enabled.
Other Features
- N.C./N.O. output silent relay
+ Photo MOSFET switch relay engaged at alarm output.
- Tamper Switch
+ The units have independent tamper outputs activated by removal of cover.
- Pulse count selectable (Only applicable to PA-8410E)
+ Pulse count is selectable for one, two, three and four counts.
- Sensitivity adjustment
+ Sensitivity is adjustable for 60%, 80%, 100% and 120%.
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
