SQ-TBA-KCKS-051

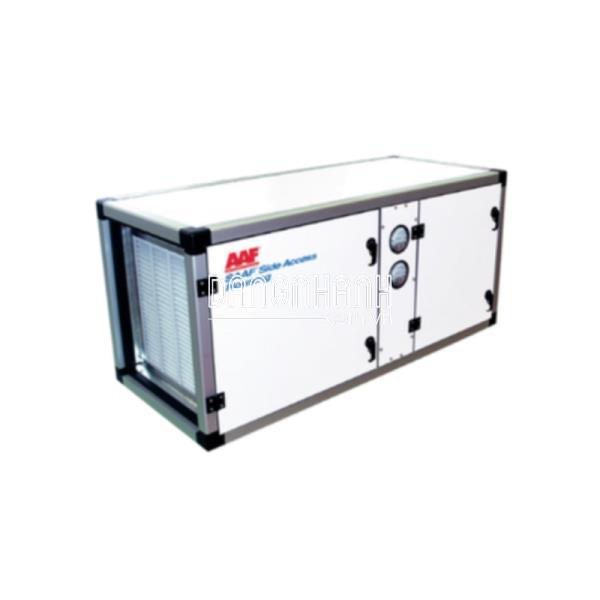

SAH-304-2P-MD-MD-12F-F-F (Outdoor)
CB-CFU-101 - 9702 CMH
Double Wall GI epoxy coated RAL9002, 0.5/0.5mm
(2" PU Insulation)
SS304 Base frame
Include rooftop for outdoor installation
purposes (Roof curb for
rainwater falling from the top of equipment)
SS304
Ingress Protection: IP55
Include Filter (initial loading only)
Include accessories as below:
- Lifting Lug SS304 and anchor bolt fixing on
base frame
- Fixing anchor bolt/nut
- Access door on one side for each section
(Hinged and latched type)
- Include 2ea Pressure Differential Indicator
Switch (Model: Dwyer
3000MR) for pre and final filter
- Manual damper (Back draft damper) for outlet
only (Top location)
- Counter flange for inlet and outlet (Top
location)
- Pressure Differential Switch for each fan
- Isolation switch for fan
- Inspection lighting (Marine lamp) with on/off
switch
Include IP56, RAL9002, SPCC control panel
(installed at side housing)
which consist of item as below Standard control
panel box given by
supplier is IP66 rating
- Indicator light with switch:
- Duty fan Auto/Manual
- Standby fan Auto/Manual
- Duty fan (Run)
- Standby fan (Run)
- Duty fan (Stop)
- Standby fan (Stop)
- Duty fan trip signal
- Standby fan trip signal
- Pre-filter alarm
- Final filter alarm
- Emergency stop switch
- Filter lighting
- Fan lighting
