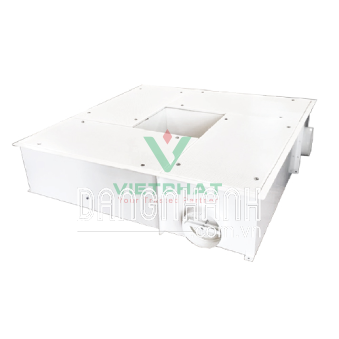

The CR II module is suitable for installation of particulate filters, including the AstroCel II filter.
Product Overview
Rigid, airtight construction
Manufactured in stainless steel
Modular design
Minimum installation height
Rectangular connecting flange
Typical Applications
Pharmaceutical
Healthcare
Microelectronics
Food and Beverage
Specification
Filter Depth (Inches): Available for 3” filter
Housing Material: GI Finished with Epoxy Coated (Standard), Stainless Steel
Gasket Material: Available for Dry Seal Filter
Supply Air Grill: Perforated Metal
Inlet Collar: 200 mm
Special Size Available: No
1. AAF PRODUCT CRII, 1800x2400x400mm
Housing Material: GI powder coat RAL9016
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
Housing Part Number: To be advise
Drawing Reference: DS-F-013-156-R00
Air Flow: 5808 CMH @ 0.45m/s
c/w Astrocel ll Standard
Cellside Frame: Aluminium Extrusion
Efficiency: 99.999% @ 0.3micron [H14]
Face Velocity: 0.45m/s
Gasket: Neoprene Gasket on Air Entering Side
Faceguard: Both Sides
a) Filter Part Number: To be advise
Size (HxWxD): 860x860x69mm
Remark: 4pcs Ast II required per housing
b) Filter Part Number: To be advise
Size (HxWxD): 560x560x69mm Remark: 2pcs Ast II required per housing
2. AAF PRODUCT CRII, 2000x2500x400mm
Housing Material: GI powder coat RAL9016
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
Housing Part Number: To be advise
Drawing Reference: DS-F-013-157-R00
Air Flow: 6826 CMH @ 0.45m/s
c/w Astrocel ll Standard
Cellside Frame: Aluminium Extrusion
Efficiency: 99.999% @ 0.3micron [H14]
Face Velocity: 0.45m/s
Gasket: Neoprene Gasket on Air Entering Side
Faceguard: Both Sides
a) Filter Part Number: To be advise
Size (HxWxD): 660x1210x69mm
Remark: 4pcs Ast II required per housing
b) Filter Part Number: To be advise
Size (HxWxD): 560x910x69mm
Remark: 2pcs Ast II required per housing
3. AAF PRODUCT CRII, 1200x1900x400mm
Housing Material: GI powder coat RAL9016
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
Housing Part Number: To be advise
Drawing Reference: DS-F-013-158-R00
Air Flow : 2764 CMH @ 0.45m/s
c/w Astrocel ll Standard
Cellside Frame: Aluminium Extrusion
Efficiency: 99.999% @ 0.3micron [H14]
Face Velocity: 0.45m/s
Gasket: Neoprene Gasket on Air Entering Side
Faceguard: Both Sides
a) Filter Part Number: To be advise
Size (HxWxD): 610x1160x69mm
Remark: 2pcs Ast II required per housing
b) Filter Part Number: To be advise
Size (HxWxD): 260x560x69mm
Remark: 2pcs Ast II required per housing
4. AAF PRODUCT CRII, 2400x2400x400mm
Housing Material: GI powder coat RAL9016
Remark: - c/w Lamp Center Module only (lamp not provided) - accessories and pallet is included
Housing Part Number: To be advise
Drawing Reference: To be advise
Air Flow: 8097 CMH @ 0.45m/s
c/w Astrocel ll Standard cellside
Frame: Aluminium Extrusion
Efficiency: 99.999% @ 0.3micron [H14]
Face Velocity: 0.45m/s
Gasket: Neoprene Gasket on Air Entering Side
Faceguard: Both Sides
a) Filter size: 560x880x69mm (2pc of astrocel II required per housing)
b) Filter size: 579x880x69mm (8pc of astrocel II required per housing)
