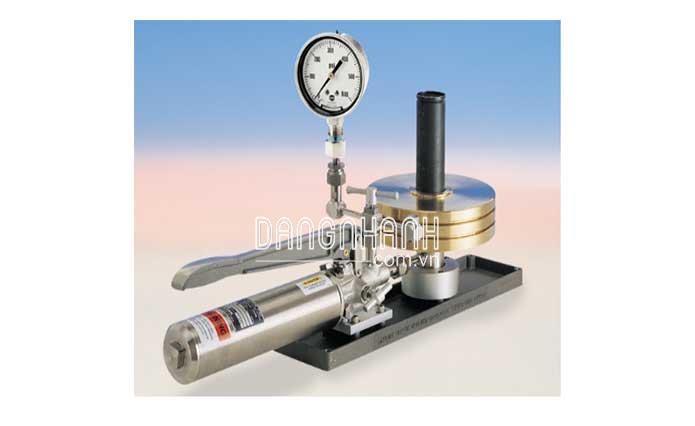

| Type: | Hydraulic, piston gauge |
| Pressure range: | to 100,000kPa/15,000psi (model dependent) |
| Accuracy (12 months): | to ±0.015%rdg |
| Increments (low-min): | 5 psi, 0.5 kg/cm2, 0.5 bar, 50 kPa |
| Increments (high-min): | 50 psi, 5 kg/cm2, 5 bar, 500 kPa |
| Gravity: | 9.80665 m/s2 (international standard) Local gravity avaiable (specify when ordering) |
| Piston/cylinders: | Single or dual |
| Columns: | Single or dual |
| Weight sets: | Single or dual |
| Pressure source: | Lever action, hand-actuated, dual volume hydraulic pump |
| Medium: | Distilled water/alcohol mix (standard) or AAA oil (optional) |
| Reservoir capacity: | 1,23L/75 in3 |
| Wetted surfaces: | 300 series stainless steel, monel |
| O-ring: | Buna N (standard), EPT (optional), Viton (optional) |
| Test connections: | 1/4" NPT, 1/2"NPT, 7/16" UNF -1/4"BSP and 1/2" BSP |
| Weight material: | Hard, non-magnectic alloy (imperial units), stainless steel (±0.015% imperial and metric models, aluminum (small incremental weight sets) |
| Engineering units | psi, kg/cm2, bar, kPa |
