SQ-TBA-KCKS-239

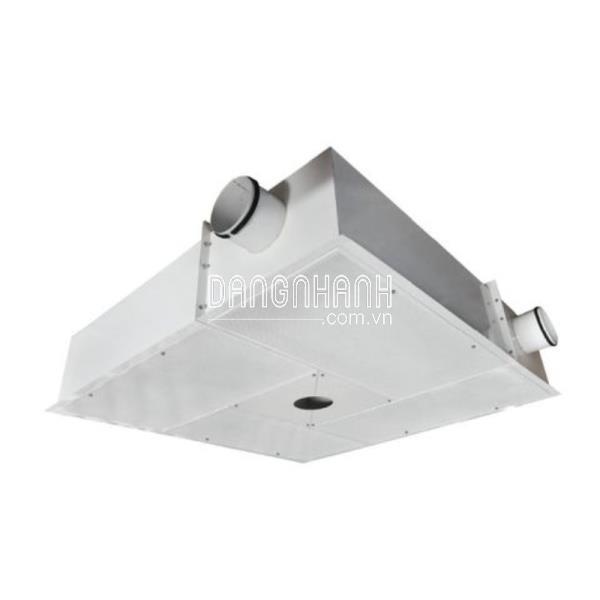

CRU-II, 2480x2480x400mm (SET)
Housing Specification - M154-514814-1003P
Housing Depth: 400mm
Housing Material: GI finished with epoxy coated
Supply Air Grille: Perforated
Supply Air Grille: GI finished with epoxy
coated
Inlet Collar: 200mm
Inlet Diffuser: Prefixed Diffusion Plate
Size: 1880Hx1880Wx400D MM
Filter Information:
Efficiency: H14 as per EN1822
Media: eFRM
Frame: Aluminium
Gasket: PU (AES)
Faceguard: Both Side
Size: 550Hx850Wx69D MM (M5752-4413-2878) - 2 EA
850Hx1150Wx69D MM (M5752-4413-3274) - 4 EA
