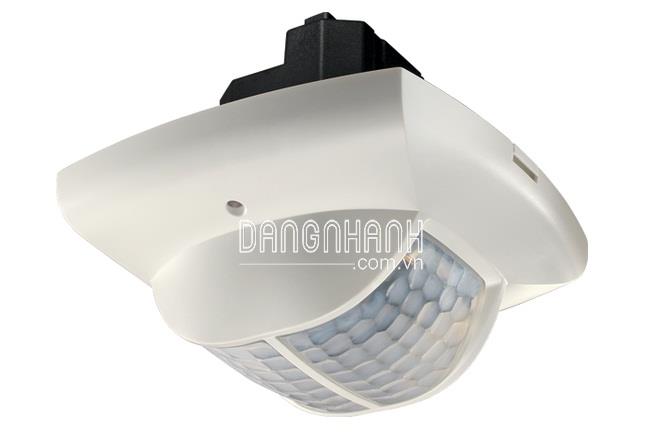

Công tắc cảm ứng hiện diện THEBEN Compact passage 24V
- Presence detector (PIR).
- Mixed light measurement.
- Automatic control of lighting and HVAC as well as room monitoring function.
- Square detection area for corridors.
- Light switch output (relay, potential-free).
- Presence switch output (relay, potential-free).
- The rectangular detection area covers an area of up to 30 metres in corridors and enables safe and simple planning.
- Fully or semi-automatic: In 'Fully automatic' mode, the lighting switches on and off automatically according to presence and light. In 'Semi-automatic' mode, it must be switched on manually and it switches off automatically.
- Manual override: The lighting can be manually switched on or off at any time via sensors or switches.
- Room/corridor sensor function: In the 'corridor' setting, the detector functions as a staircase time switch and it cannot be switched off manually.
- Master/slave parallel switching: Up to ten detectors can be connected with each other to extend the detection area. The master switches the load. All other detectors merely provide presence information as slaves.
- Device can be connected as master or slave.
- Lighting control with light threshold value and self-learning switch-off delay.
- Pulse function for staircase time switch.
- HVAC control with switch-on and switch-off delay.
- Room monitoring with selective movement detection.
- The switching behaviour of the presence detector is controlled by presence and light.
- The self-learning switch-off adjusts to occupants' behaviour.
- The pulse function is for controlling a staircase time switch.
- The presence detector has a mixed light measurement and is suitable for switching the following types of lamp: Fluorescent lamps (FL/PL), halogen and incandescent lamps as well as LEDs.
- Presence switch contact for HVAC control: The switching behaviour of the potential-free contact is only controlled by presence.
- The switch-on delay prevents instantaneous switch on. The contact only closes on completion of the switch-on delay.
- Master/master parallel switching: Up to ten detectors can be connected with each other to control several lighting groups. Each master controls its lighting group according to its own brightness measurements. Presence is detected by all the detectors.
- The sensitivity of the presence switch output is reduced in the 'monitoring' position. The contact indicates the presence of people with a high degree of certainty.
- Test operation mode checks the detection area and installation.
- The parameters can either be set using the potentiometer or via the optional service remote control SendoPro 868-A.
- A maximum of 10 detectors can be switched at the same time.
- Hãng sản xuất THEBEN của Đức.
- Bảo hành: 12 tháng.
Giá: Vui lòng gọi
